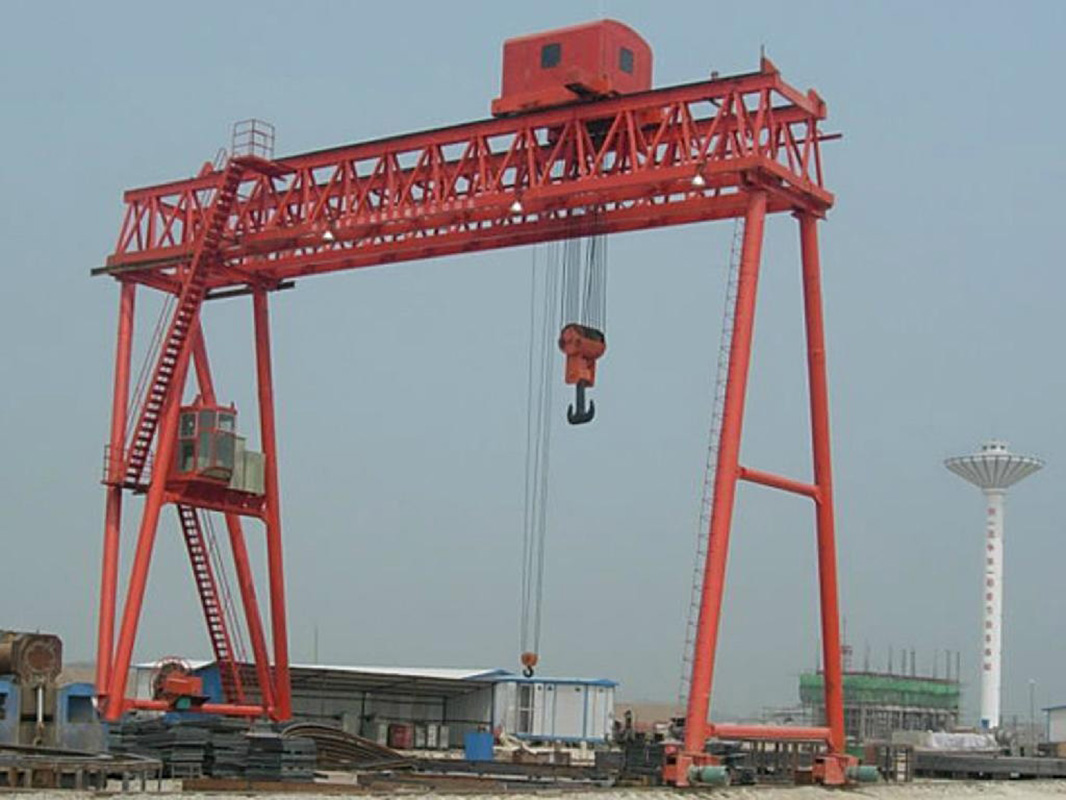

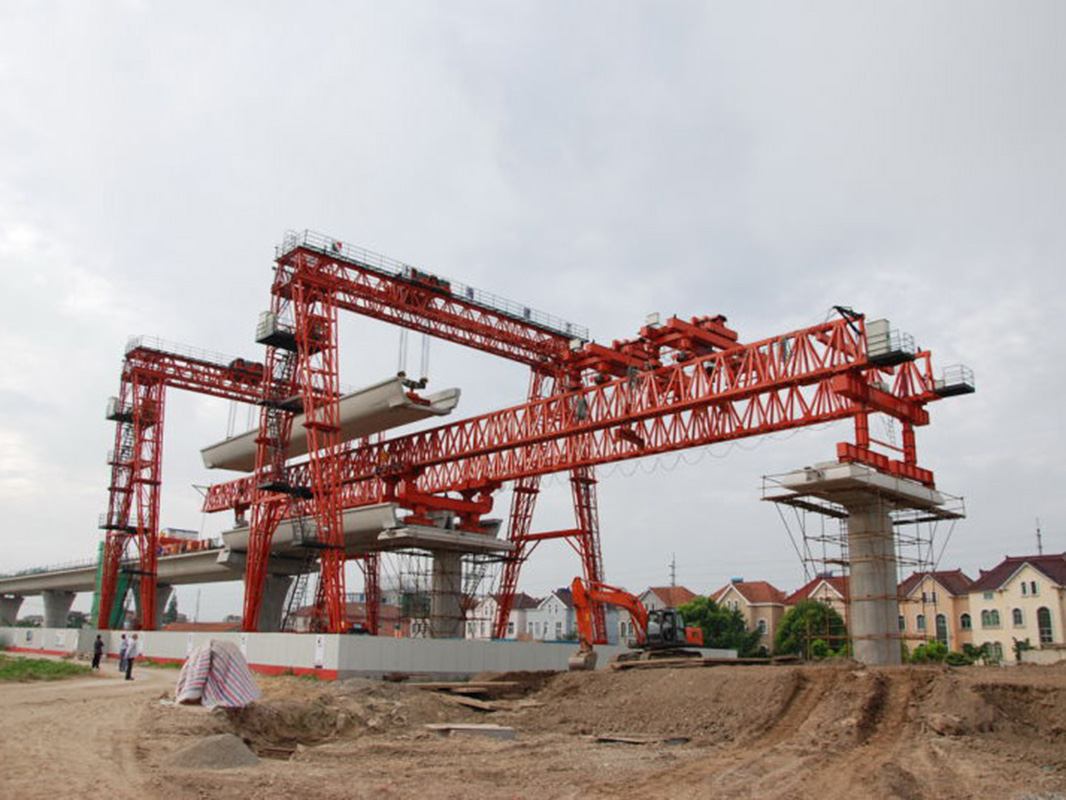

Bridge beam lifting gantry crane with truss structure is for 50-300t weight bridge beam. Its whole structure is of triangle truss type steel frame, which is suitable to erect various bridges, the skew bridge, curved bridge, cross bridge and long bridge, etc. Normally, this bridge launcher crane work with beam launching crane, and beam transporter---integrating the work of bridge beam making, transporting, and launching. This design is of light weight, small windward area, easy transportation, easy assembly & disassembly.

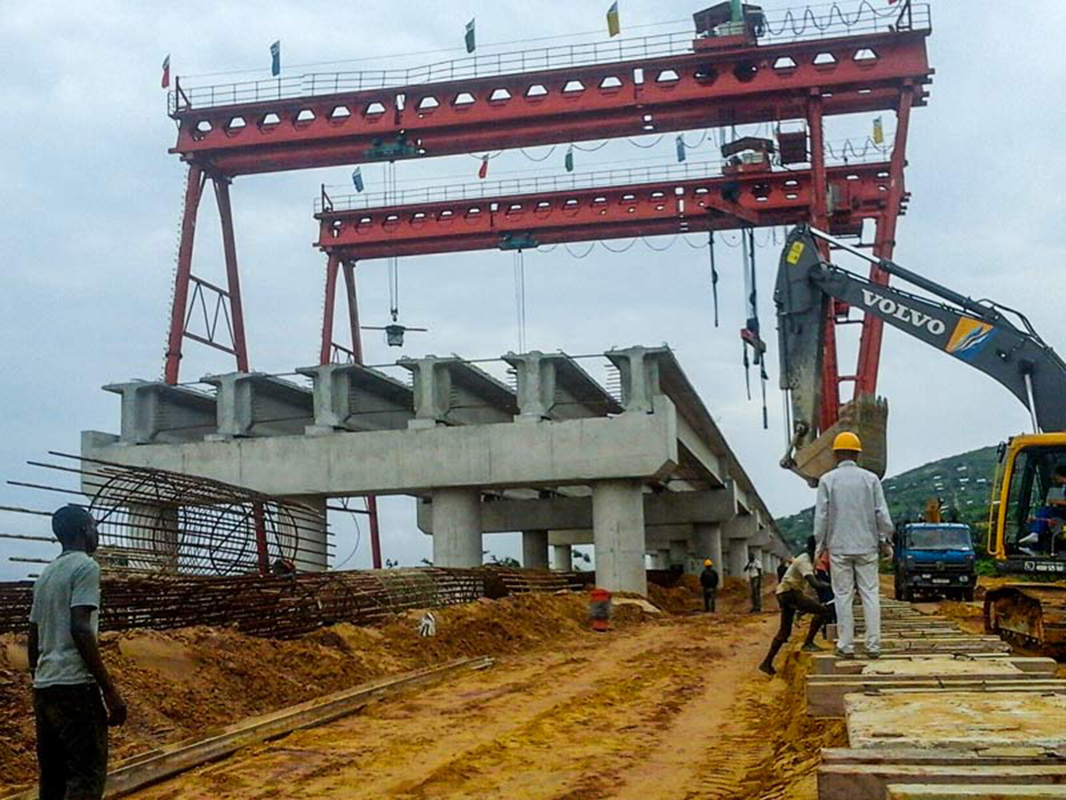

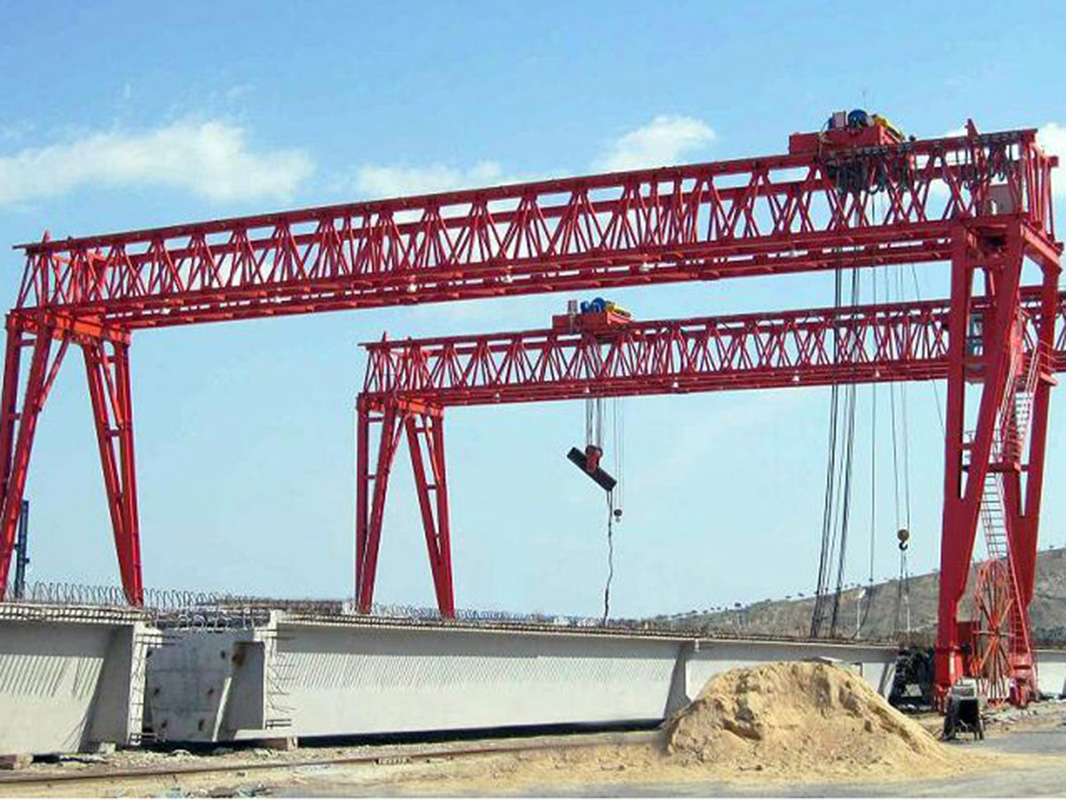

Bridge beam lifting gantry crane has two types: MG model, single trolley type; ME model, double trolley type. They are mainly applied in the precast beam-making yard for highway project, express way project, or, the bridge construction site, etc.
Parameters feature:
Model: MG, ME
Lifting capacity: 50~300t
Span: 10-50m
Lifting height: 6-48m
Application: outdoor
Certification: ISO9001
Place of Origin:Henan, China (Mainland)
Control method: Pendant, remote control or cabin control
Bridge beam lifting gantry crane has two types: MG model, single trolley type; ME model, double trolley type. They are mainly applied in the precast beam-making yard for highway project, express way project, or, the bridge construction site, etc.
Parameters feature:
Model: MG, ME
Lifting capacity: 50~300t
Span: 10-50m
Lifting height: 6-48m
Application: outdoor
Certification: ISO9001
Place of Origin:Henan, China (Mainland)
Control method: Pendant, remote control or cabin control
yle="width:730px;">
| Model | MG60/5T | MG80/5T | MG120/10T | MG150/10T |
| Structure type | 2A truss type structure | |||
| Lifting capacity | 60/5t | 80/5t | 120/10t | 150/10t |
| span | 16-32m | 16-36m | 20-38m | 26-42m |
| Lifting height | 8-20m | 8-26m | 8-32m | 8-32m |
| Work duty | A3 | |||
| Suitable Slope | 2.50% | |||
| Max Wind pressue at work | 300N/M2 | |||
| Max Wind pressue at non-work | 800N/M2 | |||
| Lifting speed | 0.64/8 m/min | 0.64m/min | 0.56m/min | 0.45m/min |
| Trolley speed | 5.2-10m/min | 5.2-10m/min | 5.2-7.2m/min | 5.2-7.2m/min |
| Traveling speed | 5.2-14m/min | 5.2-14m/min | 3-5.2m/min | 3-5.2m/min |
| Trolley weight | 5.2t | 5.6t | 7t | 8.4t |
| Crane weight | 28-65t | 32-76t | 45-85t | 68-115t |
| Power source | 380v 50hz 3p | |||
| Wheel pressure | trolley 220-280kn crane 180-240kn | trolley 220-300kn crane 200-260kn | trolley 260-350kn crane 200-260kn | trolley 260-350kn crane 180-220kn |
| Installed Power | 40.5kw | 46.5kw | 52kw | 68.5kw |
| recommend rail | P38 | P43 | P43 | QU80 |
|
Note: 1 Standard tonnage 30t 40t 50m 60t 65t 70t 75t 80t 90t 100t 120t 150t; 2 All the values in this table are just a reference for you. 3 We do customized design according to customer request. |
||||
